Soportes en Acero Inoxidable (SP)Soportes y rodamientos de soporte
Soportes en Acero Inoxidable (SP)
| Ref | d | h | a | e | b | S1 | S2 | g | w | Weight (kg) | Bearing |
|---|---|---|---|---|---|---|---|---|---|---|---|
SP204
|
20.00 | 33.30 | 125.00 | 95.00 | 37.00 | 13.00 | 19.00 | 14.00 | 63.50 | 0.69 | SUC204 |
|
SP205
|
25.00 | 36.50 | 140.00 | 105.00 | 37.00 | 13.00 | 19.00 | 15.00 | 71.00 | 0.74 | SUC205 |
|
SP206
|
30.00 | 42.90 | 163.00 | 121.00 | 48.00 | 17.00 | 20.00 | 17.00 | 82.00 | 1.29 | SUC206 |
|
SP207
|
35.00 | 47.60 | 167.00 | 127.00 | 48.00 | 17.00 | 20.00 | 18.00 | 93.00 | 1.42 | SUC207 |
|
SP208
|
40.00 | 49.20 | 184.00 | 137.00 | 54.00 | 17.00 | 20.00 | 18.00 | 100.00 | 1.82 | SUC208 |
|
SP209
|
45.00 | 54.00 | 190.00 | 146.00 | 54.00 | 17.00 | 20.00 | 20.00 | 106.00 | 2.09 | SUC209 |
|
SP210
|
50.00 | 57.20 | 206.00 | 159.00 | 60.00 | 20.00 | 23.00 | 21.00 | 113.00 | 2.38 | SUC210 |
|
SP211
|
55.00 | 63.50 | 219.00 | 171.00 | 60.00 | 20.00 | 23.00 | 23.00 | 125.00 | 2.55 | SUC211 |
|
SP212
|
60.00 | 69.80 | 241.00 | 184.00 | 70.00 | 20.00 | 23.00 | 25.00 | 138.00 | 3.40 | SUC212 |

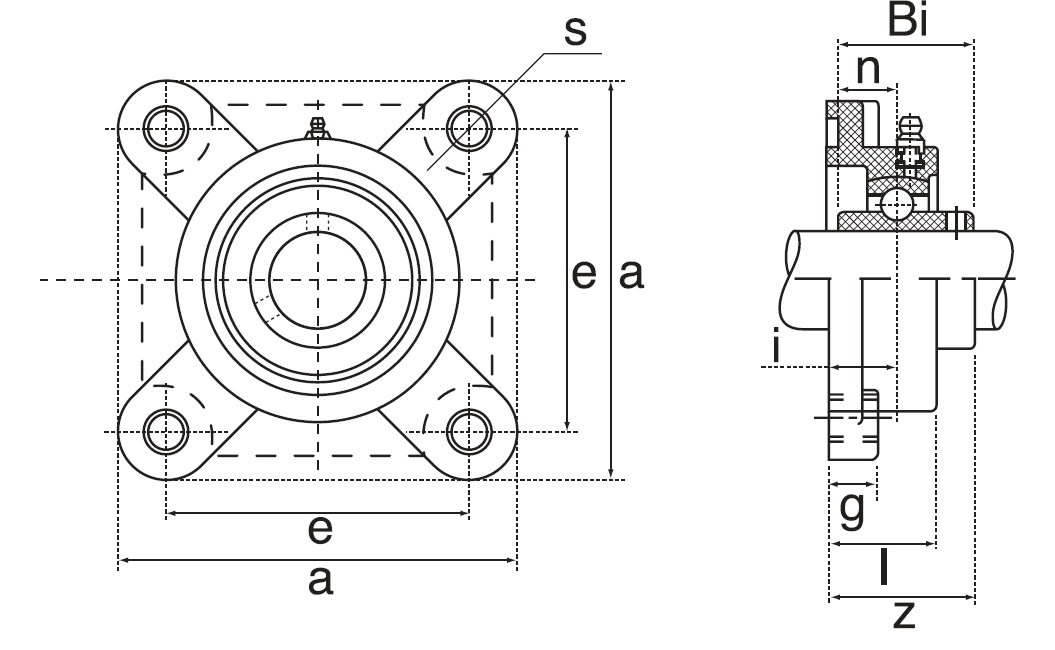

Soportes en Acero Inoxidable (SF)
| Ref | d | a | e | i | l | g | s | z | Weight (kg) | Bearing |
|---|---|---|---|---|---|---|---|---|---|---|
|
SF204
|
20.00 | 86.00 | 63.50 | 15.10 | 25.40 | 12.00 | 12.00 | 33.30 | 0.47 | SUC204 |
|
SF205
|
25.00 | 95.00 | 70.00 | 15.90 | 27.00 | 14.00 | 12.00 | 35.80 | 0.65 | SUC205 |
|
SF206
|
30.00 | 108.00 | 82.50 | 17.90 | 30.00 | 14.00 | 12.00 | 40.20 | 0.85 | SUC206 |
|
SF207
|
35.00 | 117.00 | 92.00 | 19.10 | 33.00 | 16.00 | 14.00 | 44.40 | 1.03 | SUC207 |
|
SF208
|
40.00 | 130.00 | 101.60 | 21.00 | 36.00 | 16.00 | 16.00 | 51.20 | 1.38 | SUC208 |
|
SF209
|
45.00 | 137.00 | 104.80 | 21.80 | 37.00 | 16.00 | 16.00 | 52.20 | 1.50 | SUC209 |
|
SF210
|
50.00 | 143.00 | 111.00 | 21.80 | 38.00 | 18.00 | 16.00 | 54.60 | 1.63 | SUC210 |
|
SF211
|
55.00 | 162.00 | 130.00 | 25.00 | 43.00 | 20.00 | 19.00 | 58.40 | 3.25 | SUC211 |
|
SF212
|
60.00 | 175.00 | 143.00 | 29.00 | 48.00 | 20.00 | 19.00 | 68.70 | 4.20 | SUC212 |
Soportes en Acero Inoxidable (SFL)
| Ref | d | a | e | i | b | l | g | s | Weight (kg) | Bearing |
|---|---|---|---|---|---|---|---|---|---|---|
|
SFL204
|
20.00 | 113.00 | 90.00 | 15.00 | 60.00 | 25.50 | 11.00 | 12.00 | 0.32 | SUC204 |
|
SFL205
|
25.00 | 130.00 | 99.00 | 16.00 | 68.00 | 27.00 | 13.00 | 16.00 | 0.44 | SUC205 |
|
SFL206
|
30.00 | 148.00 | 117.00 | 18.00 | 80.00 | 31.00 | 13.00 | 16.00 | 0.58 | SUC206 |
|
SFL207
|
35.00 | 161.00 | 130.00 | 19.00 | 90.00 | 34.00 | 14.00 | 16.00 | 0.74 | SUC207 |
|
SFL208
|
40.00 | 175.00 | 144.00 | 21.00 | 100.00 | 36.00 | 14.00 | 16.00 | 0.99 | SUC208 |
|
SFL209
|
45.00 | 188.00 | 148.00 | 22.00 | 108.00 | 38.00 | 15.00 | 19.00 | 1.16 | SUC209 |
|
SFL210
|
50.00 | 197.00 | 157.00 | 22.00 | 114.60 | 40.00 | 15.00 | 19.00 | 1.36 | SUC210 |
|
SFL211
|
55.00 | 224.00 | 184.00 | 25.00 | 130.00 | 43.00 | 18.00 | 19.00 | 2.20 | SUC211 |
|
SFL212
|
60.00 | 250.00 | 202.00 | 29.00 | 138.50 | 48.00 | 18.00 | 23.00 | 2.65 | SUC212 |
Soportes en Acero Inoxidable (SFC)
| Ref | d | a | p | e | i | s | j | g | f | z | Bi | n | Weight (kg) | Bearing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SFC201
|
12.00 | 100.00 | 78.00 | 55.10 | 10.00 | 12.00 | 5.00 | 20.50 | 62.00 | 28.30 | 31.00 | 12.70 | 0.72 | SUC201 |
|
SFC202
|
15.00 | 100.00 | 78.00 | 55.10 | 10.00 | 12.00 | 5.00 | 20.50 | 62.00 | 28.30 | 31.00 | 12.70 | 0.72 | SUC202 |
|
SFC203
|
17.00 | 100.00 | 78.00 | 55.10 | 10.00 | 12.00 | 5.00 | 20.50 | 62.00 | 28.30 | 31.00 | 12.70 | 0.72 | SUC203 |
|
SFC204
|
20.00 | 100.00 | 78.00 | 55.10 | 10.00 | 12.00 | 5.00 | 20.50 | 62.00 | 28.30 | 31.00 | 12.70 | 0.72 | SUC204 |
|
SFC205
|
25.00 | 115.00 | 90.00 | 63.60 | 10.00 | 12.00 | 6.00 | 21.00 | 70.00 | 29.80 | 34.10 | 14.30 | 0.98 | SUC205 |
|
SFC206
|
30.00 | 125.00 | 100.00 | 70.70 | 10.00 | 12.00 | 8.00 | 23.00 | 80.00 | 32.20 | 38.10 | 15.90 | 1.30 | SUC206 |
|
SFC207
|
35.00 | 135.00 | 110.00 | 77.80 | 11.00 | 14.00 | 8.00 | 26.00 | 90.00 | 36.40 | 42.90 | 17.50 | 1.80 | SUC207 |
|
SFC208
|
40.00 | 145.00 | 120.00 | 84.80 | 11.00 | 14.00 | 10.00 | 26.00 | 100.00 | 41.20 | 42.90 | 19.00 | 2.00 | SUC208 |
|
SFC209
|
45.00 | 158.70 | 132.00 | 93.30 | 10.00 | 16.00 | 12.00 | 26.00 | 105.00 | 40.20 | 49.20 | 19.00 | 2.90 | SUC209 |
|
SFC210
|
50.00 | 163.00 | 138.00 | 97.60 | 10.00 | 16.00 | 12.00 | 28.00 | 110.00 | 42.60 | 51.60 | 19.00 | 2.90 | SUC210 |
|
SFC211
|
55.00 | 185.00 | 150.00 | 106.10 | 13.00 | 19.00 | 12.00 | 31.00 | 125.00 | 46.40 | 55.60 | 22.20 | 4.50 | SUC211 |
|
SFC212
|
60.00 | 193.50 | 160.00 | 113.10 | 17.00 | 19.00 | 12.00 | 36.00 | 135.00 | 56.70 | 65.10 | 25.40 | 5.10 | SUC212 |
Soportes en Acero Inoxidable (ST)
| Ref | d | o | g | p | q | s | b | k | e | a | w | j | l | h | Bi | n | Weight (kg) | Bearing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ST201
|
12.00 | 16.00 | 10.00 | 51.00 | 32.00 | 19.00 | 51.00 | 12.00 | 76.00 | 89.00 | 94.00 | 32.00 | 21.00 | 61.00 | 31.00 | 12.70 | 0.73 | SUC201 |
|
ST202
|
15.00 | 16.00 | 10.00 | 51.00 | 32.00 | 19.00 | 51.00 | 12.00 | 76.00 | 89.00 | 97.00 | 32.00 | 24.00 | 62.00 | 34.10 | 14.30 | 0.73 | SUC202 |
|
ST203
|
17.00 | 16.00 | 10.00 | 56.00 | 37.00 | 22.00 | 57.00 | 12.00 | 89.00 | 102.00 | 113.00 | 37.00 | 28.00 | 70.00 | 38.10 | 15.90 | 0.73 | SUC203 |
|
ST204
|
20.00 | 16.00 | 13.00 | 64.00 | 37.00 | 22.00 | 64.00 | 12.00 | 89.00 | 102.00 | 129.00 | 37.00 | 30.00 | 78.00 | 42.90 | 17.50 | 0.73 | SUC204 |
|
ST205
|
25.00 | 16.00 | 10.00 | 51.00 | 32.00 | 19.00 | 51.00 | 12.00 | 76.00 | 89.00 | 97.00 | 32.00 | 24.00 | 62.00 | 34.10 | 14.30 | 0.80 | SUC205 |
|
ST206
|
30.00 | 16.00 | 10.00 | 56.00 | 37.00 | 22.00 | 57.00 | 12.00 | 89.00 | 102.00 | 113.00 | 37.00 | 28.00 | 70.00 | 38.10 | 15.90 | 1.15 | SUC206 |
|
ST207
|
35.00 | 16.00 | 13.00 | 64.00 | 37.00 | 22.00 | 64.00 | 12.00 | 89.00 | 102.00 | 129.00 | 37.00 | 30.00 | 78.00 | 42.90 | 17.50 | 1.35 | SUC207 |
|
ST208
|
40.00 | 19.00 | 16.00 | 83.00 | 49.00 | 29.00 | 83.00 | 16.00 | 102.00 | 114.00 | 144.00 | 49.00 | 33.00 | 88.00 | 49.20 | 19.00 | 2.05 | SUC208 |
|
ST209
|
45.00 | 19.00 | 16.00 | 83.00 | 49.00 | 29.00 | 83.00 | 16.00 | 102.00 | 117.00 | 144.00 | 49.00 | 35.00 | 87.00 | 49.20 | 19.00 | 2.10 | SUC209 |
|
ST210
|
50.00 | 19.00 | 16.00 | 83.00 | 49.00 | 29.00 | 86.00 | 16.00 | 102.00 | 117.00 | 149.00 | 49.00 | 37.00 | 90.00 | 51.60 | 19.00 | 2.10 | SUC210 |
|
ST211
|
55.00 | 25.00 | 19.00 | 102.00 | 64.00 | 35.00 | 95.00 | 22.00 | 130.00 | 146.00 | 171.00 | 64.00 | 38.00 | 106.00 | 55.60 | 22.20 | 3.10 | SUC211 |
|
ST212
|
60.00 | 32.00 | 19.00 | 102.00 | 64.00 | 35.00 | 102.00 | 22.00 | 130.00 | 146.00 | 194.00 | 64.00 | 42.00 | 119.00 | 65.10 | 25.40 | 3.60 | SUC212 |
Soportes en Acero Inoxidable (SFB)
| Ref | d | J | h | c | f | L | g | e | a | s | b | Weight (kg) | Bearing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SFB204
|
20.00 | 42.90 | 108.00 | 38.10 | 22.00 | 15.90 | 8.00 | 25.40 | 52.00 | 10.00 | 60.30 | 0.39 | SUC204 |
|
SFB205
|
25.00 | 46.00 | 121.00 | 41.30 | 28.50 | 16.70 | 9.50 | 28.50 | 52.00 | 10.00 | 63.50 | 0.54 | SUC205 |
|
SFB206
|
30.00 | 52.40 | 137.00 | 47.60 | 31.70 | 18.60 | 9.50 | 32.00 | 55.00 | 10.00 | 70.00 | 0.77 | SUC206 |
|
SFB207
|
35.00 | 60.30 | 156.00 | 50.80 | 31.70 | 21.00 | 12.70 | 36.50 | 62.00 | 13.00 | 83.00 | 1.16 | SUC207 |
|
SFB208
|
40.00 | 60.00 | 164.00 | 50.00 | 41.30 | 21.00 | 15.90 | 35.70 | 72.00 | 11.00 | 78.00 | 1.65 | SUC208 |
|
SFB209
|
45.00 | 65.00 | 174.00 | 54.00 | 42.90 | 21.80 | 18.30 | 38.00 | 76.00 | 11.00 | 80.00 | 1.91 | SUC209 |
|
SFB210
|
50.00 | 74.60 | 190.00 | 69.90 | 41.30 | 21.80 | 12.70 | 38.00 | 82.00 | 13.00 | 102.00 | 2.34 | SUC210 |
Soportes en Acero Inoxidable (SPA)
| Ref | d | h | a | e | b | g | s | w | Bi | n | Weight (kg) | Bearing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SPA201
|
12.00 | 30.20 | 72.60 | 52.00 | 38.00 | 15.00 | M10 | 64.00 | 31.00 | 12.70 | 0.57 | SUC201 |
|
SPA202
|
15.00 | 30.20 | 72.60 | 52.00 | 38.00 | 15.00 | M10 | 64.00 | 31.00 | 12.70 | 0.57 | SUC202 |
|
SPA203
|
17.00 | 30.20 | 72.60 | 52.00 | 38.00 | 15.00 | M10 | 64.00 | 31.00 | 12.70 | 0.57 | SUC203 |
|
SPA204
|
20.00 | 30.20 | 72.60 | 52.00 | 38.00 | 15.00 | M10 | 64.00 | 31.00 | 12.70 | 0.57 | SUC204 |
|
SPA205
|
25.00 | 36.50 | 84.00 | 56.00 | 38.00 | 15.00 | M10 | 72.00 | 34.10 | 14.30 | 0.67 | SUC205 |
|
SPA206
|
30.00 | 42.90 | 94.00 | 66.00 | 48.00 | 18.00 | M14 | 84.00 | 38.10 | 15.90 | 0.80 | SUC206 |
|
SPA207
|
35.00 | 47.90 | 110.00 | 80.00 | 48.00 | 20.00 | M14 | 95.00 | 42.90 | 17.50 | 1.38 | SUC207 |
|
SPA208
|
40.00 | 49.20 | 116.00 | 84.00 | 54.00 | 20.00 | M14 | 100.00 | 49.20 | 19.00 | 1.75 | SUC208 |
|
SPA209
|
45.00 | 54.20 | 120.00 | 90.00 | 54.00 | 25.00 | M14 | 108.00 | 49.20 | 19.00 | 1.80 | SUC209 |
|
SPA210
|
50.00 | 57.20 | 130.00 | 94.00 | 60.00 | 25.00 | M16 | 116.00 | 51.60 | 19.00 | 2.40 | SUC210 |
|
SPA211
|
55.00 | 63.50 | 140.00 | 104.00 | 66.00 | 25.00 | M16 | 125.00 | 55.60 | 22.20 | 2.80 | SUC211 |
|
SPA212
|
60.00 | 69.90 | 150.00 | 114.00 | 68.00 | 25.00 | M16 | 138.00 | 65.10 | 25.40 | 3.70 | SUC212 |
Soportes en Termoplástico (TP)
| Ref | h | a | e | b | S1 | S2 | g | w | Bi | n | Weight (kg) | Bearing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TP201
|
33.30 | 127.00 | 95.00 | 38.00 | 11.00 | 14.00 | 14.20 | 65.60 | 31.00 | 12.70 | 0.12 | SUC201 |
|
TP202
|
33.30 | 127.00 | 95.00 | 38.00 | 11.00 | 14.00 | 14.20 | 65.60 | 31.00 | 12.70 | 0.12 | SUC202 |
|
TP203
|
33.30 | 127.00 | 95.00 | 38.00 | 11.00 | 14.00 | 14.20 | 65.60 | 31.00 | 12.70 | 0.12 | SUC203 |
|
TP204
|
33.30 | 127.00 | 95.00 | 38.00 | 11.00 | 14.00 | 14.20 | 65.60 | 31.00 | 12.70 | 0.12 | SUC204 |
|
TP205
|
36.50 | 140.60 | 105.00 | 38.00 | 11.00 | 14.00 | 14.50 | 71.00 | 34.00 | 14.30 | 0.14 | SUC205 |
|
TP206
|
42.90 | 163.00 | 119.00 | 46.00 | 14.00 | 18.00 | 17.80 | 84.00 | 38.10 | 15.90 | 0.20 | SUC206 |
|
TP207
|
47.60 | 168.00 | 127.00 | 48.00 | 14.00 | 18.00 | 18.00 | 94.50 | 42.90 | 17.50 | 0.25 | SUC207 |
|
TP208
|
49.20 | 184.00 | 137.00 | 54.00 | 14.00 | 18.00 | 19.50 | 101.00 | 49.20 | 19.00 | 0.35 | SUC208 |
|
TP209
|
54.00 | 192.00 | 146.00 | 54.00 | 17.00 | 20.00 | 23.00 | 106.00 | 49.20 | 19.00 | 0.45 | SUC209 |
|
TP210
|
57.20 | 206.00 | 159.00 | 60.00 | 17.00 | 20.00 | 23.00 | 114.00 | 51.60 | 19.00 | 0.55 | SUC210 |
|
TP211
|
63.50 | 219.00 | 171.00 | 60.00 | 20.00 | 23.00 | 23.00 | 127.00 | 55.60 | 22.20 | 1.38 | SUC211 |
|
TP212
|
69.50 | 241.00 | 184.00 | 70.00 | 20.00 | 23.00 | 25.00 | 138.00 | 65.10 | 25.40 | 1.52 | SUC212 |
Soportes en Termoplástico (TF)
| Ref | a | e | g | l | s | z | i | Bi | n | Weight (kg) | Bearing |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
TF201
|
86.00 | 63.50 | 13.40 | 27.80 | 11.00 | 34.60 | 18.00 | 31.00 | 12.70 | 0.12 | SUC201 |
|
TF202
|
86.00 | 63.50 | 13.40 | 27.80 | 11.00 | 34.60 | 18.00 | 31.00 | 12.70 | 0.12 | SUC202 |
|
TF203
|
86.00 | 63.50 | 13.40 | 27.80 | 11.00 | 34.60 | 18.00 | 31.00 | 12.70 | 0.12 | SUC203 |
|
TF204
|
86.00 | 63.50 | 13.40 | 27.80 | 11.00 | 34.60 | 18.00 | 31.00 | 12.70 | 0.12 | SUC204 |
|
TF205
|
95.00 | 70.00 | 14.00 | 28.00 | 11.00 | 36.70 | 17.00 | 34.00 | 14.30 | 0.15 | SUC205 |
|
TF206
|
107.00 | 83.00 | 14.30 | 31.50 | 11.00 | 41.20 | 19.20 | 38.10 | 15.90 | 0.18 | SUC206 |
|
TF207
|
118.00 | 92.00 | 15.50 | 34.80 | 13.00 | 46.90 | 21.50 | 42.90 | 17.50 | 0.26 | SUC207 |
|
TF208
|
130.00 | 102.00 | 17.00 | 37.50 | 14.00 | 53.20 | 23.00 | 49.20 | 19.00 | 0.33 | SUC208 |
|
TF209
|
137.00 | 105.00 | 19.00 | 41.00 | 17.00 | 54.20 | 24.00 | 49.20 | 19.00 | 0.42 | SUC209 |
|
TF210
|
143.00 | 111.00 | 21.00 | 43.00 | 17.00 | 57.60 | 25.00 | 51.60 | 19.00 | 0.51 | SUC210 |
|
TF211
|
162.00 | 130.00 | 20.00 | 43.00 | 19.00 | 58.40 | 25.00 | 55.60 | 22.20 | 1.40 | SUC211 |
|
TF212
|
175.00 | 143.00 | 20.00 | 48.00 | 19.00 | 68.70 | 29.00 | 65.10 | 25.40 | 1.60 | SUC212 |
Soportes en Termoplástico (TFL)
| Ref | a | e | b | g | l | s | z | i | Bi | n | Weight (kg) | Bearing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TFL201
|
113.00 | 90.00 | 65.00 | 13.40 | 26.50 | 11.00 | 33.30 | 15.40 | 31.00 | 12.70 | 0.08 | SUC201 |
|
TFL202
|
113.00 | 90.00 | 65.00 | 13.40 | 26.50 | 11.00 | 33.30 | 15.40 | 31.00 | 12.70 | 0.08 | SUC202 |
|
TFL203
|
113.00 | 90.00 | 65.00 | 13.40 | 26.50 | 11.00 | 33.30 | 15.40 | 31.00 | 12.70 | 0.08 | SUC203 |
|
TFL204
|
113.00 | 90.00 | 65.00 | 13.40 | 26.50 | 11.00 | 33.30 | 15.40 | 31.00 | 12.70 | 0.08 | SUC204 |
|
TFL205
|
134.00 | 99.00 | 70.00 | 14.30 | 28.00 | 11.00 | 36.20 | 17.00 | 34.00 | 14.30 | 0.10 | SUC205 |
|
TFL206
|
148.00 | 117.00 | 80.00 | 14.30 | 30.50 | 11.00 | 40.20 | 19.00 | 38.10 | 15.90 | 0.13 | SUC206 |
|
TFL207
|
164.00 | 130.00 | 90.00 | 15.50 | 32.00 | 13.00 | 44.40 | 19.00 | 42.90 | 17.50 | 0.16 | SUC207 |
|
TFL208
|
176.00 | 144.00 | 100.00 | 17.21 | 35.00 | 14.00 | 51.70 | 21.50 | 49.20 | 19.00 | 0.24 | SUC208 |
|
TFL209
|
188.00 | 149.00 | 108.00 | 21.00 | 41.00 | 17.00 | 54.20 | 24.00 | 49.20 | 19.00 | 0.32 | SUC209 |
|
TFL210
|
197.00 | 157.00 | 115.00 | 21.00 | 43.00 | 17.00 | 57.60 | 25.00 | 51.60 | 19.00 | 0.42 | SUC210 |
|
TFL211
|
226.00 | 185.00 | 129.00 | 20.00 | 43.00 | 19.00 | 58.40 | 25.00 | 55.60 | 22.20 | 1.40 | SUC211 |
|
TFL212
|
250.00 | 202.00 | 140.00 | 20.00 | 48.00 | 19.00 | 68.70 | 29.00 | 65.10 | 25.40 | 1.60 | SUC212 |

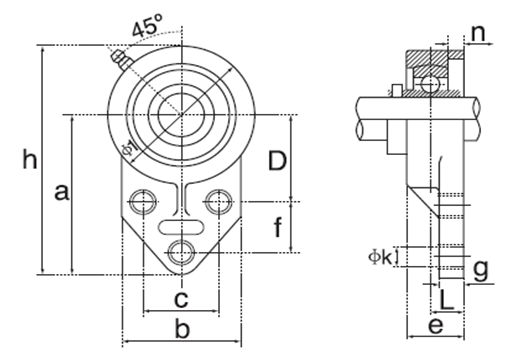

Soportes en Termoplástico (FBL)
| Ref | a | b | c | D | e | f | g | h | k | n | Bolt Dia | Weight (kg) | Bearing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FBL201
|
76.20 | 62.00 | 38.10 | 42.90 | 33.70 | 22.20 | 11.40 | 108.00 | 10.70 | 12.70 | M10 | 0.08 | SUC201 |
|
FBL202
|
76.20 | 62.00 | 38.10 | 42.90 | 33.70 | 22.20 | 11.40 | 108.00 | 10.70 | 12.70 | M10 | 0.08 | SUC202 |
|
FBL203
|
76.20 | 62.00 | 38.10 | 42.90 | 33.70 | 22.20 | 11.40 | 108.00 | 10.70 | 12.70 | M10 | 0.08 | SUC203 |
|
FBL204
|
76.20 | 62.00 | 38.10 | 42.90 | 33.70 | 22.20 | 11.40 | 108.00 | 10.70 | 12.70 | M10 | 0.08 | SUC204 |
|
FBL205
|
85.70 | 63.50 | 41.30 | 46.00 | 41.20 | 28.60 | 11.40 | 120.60 | 10.70 | 14.30 | M10 | 0.11 | SUC205 |
|
FBL206
|
96.50 | 76.00 | 47.60 | 52.40 | 41.50 | 31.80 | 13.30 | 138.50 | 10.70 | 15.90 | M10 | 0.16 | SUC206 |
|
FBL207
|
109.50 | 98.00 | 50.80 | 60.30 | 47.10 | 31.80 | 16.10 | 157.00 | 13.10 | 17.50 | M12 | 0.23 | SUC207 |
Soportes en Termoplástico (TPA)
| Ref | d | a | e | h | b | s | c | Bi | n | g | Weight (kg) | Bearing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TPA204
|
20.00 | 76.00 | 52.00 | 33.30 | 38.00 | M8 | 64.00 | 31.00 | 12.70 | 13.00 | 0.09 | SUC204 |
|
TPA205
|
25.00 | 84.00 | 56.00 | 36.50 | 38.00 | M10 | 72.00 | 34.10 | 14.30 | 13.00 | 0.12 | SUC205 |
|
TPA206
|
30.00 | 94.00 | 66.00 | 42.90 | 48.00 | M10 | 84.00 | 38.10 | 15.90 | 16.00 | 0.18 | SUC206 |
|
TPA207
|
35.00 | 110.00 | 80.00 | 47.60 | 48.00 | M10 | 95.00 | 49.20 | 17.50 | 18.00 | 0.26 | SUC207 |
|
TPA208
|
40.00 | 116.00 | 84.00 | 49.20 | 54.00 | M12 | 100.00 | 49.20 | 19.00 | 20.00 | 0.3 | SUC208 |
|
TPA209
|
45.00 | 120.00 | 90.00 | 54.20 | 54.00 | M12 | 108.00 | 49.20 | 19.00 | 20.00 | 0.35 | SUC209 |
|
TPA210
|
50.00 | 130.00 | 94.00 | 57.20 | 60.00 | M16 | 116.00 | 51.60 | 19.00 | 22.00 | 0.45 | SUC210 |
Soportes en Termoplástico (HPL)| Ref | d | w | l | h | a | s | i | b | Weight (kg) | Bearing |
|---|---|---|---|---|---|---|---|---|---|---|
|
HPL204
|
20 | 99 | 23.00 | 64 | 65 | M16 | 36 | 46 | 0.18 | SUC204 |
|
HPL205
|
25 | 99 | 24.00 | 64 | 74 | M16 | 36 | 47 | 0.17 | SUC205 |
|
HPL206
|
30 | 125 | 27.50 | 76 | 90 | M16 | 40 | 63 | 0.27 | SUC206 |
|
HPL207
|
35 | 125 | 28.00 | 76 | 90 | M16 | 40 | 63 | 0.28 | SUC207 |
|
HPL208
|
40 | 140 | 29.00 | 85 | 100 | M16 | 40 | 80 | 0.36 | SUC208 |
|
HPL209
|
45 | 149 | 40.00 | 90 | 110 | M20 | 50 | 85 | 0.41 | SUC209 |
|
HPL210
|
50 | 149 | 40.00 | 90 | 110 | M20 | 50 | 85 | 0.47 | SUC210 |
Inserto en Acero Inoxidable (SUC)
| Ref | d | D | B1 | B2 | Load Rating | OR Material | IR Material | Ball Material | |
|---|---|---|---|---|---|---|---|---|---|
| dynamic | static | ||||||||
|
SUC201
|
12.00 | 47.00 | 17.00 | 31.00 | 7500 | 4500 | AISI420 | AISI420 | AISI420 |
|
SUC201-8
|
12.70 | 47.00 | 17.00 | 31.00 | 7500 | 4500 | AISI420 | AISI420 | AISI420 |
|
SUC202
|
15.00 | 47.00 | 17.00 | 31.00 | 7500 | 4500 | AISI420 | AISI420 | AISI420 |
|
SUC202-10
|
15.87 | 47.00 | 17.00 | 31.00 | 7500 | 4500 | AISI420 | AISI420 | AISI420 |
|
SUC203
|
17.00 | 47.00 | 17.00 | 31.00 | 7500 | 4500 | AISI420 | AISI420 | AISI420 |
|
SUC203-11
|
17.46 | 47.00 | 17.00 | 31.00 | 7500 | 4500 | AISI420 | AISI420 | AISI420 |
|
SUC204-12
|
19.05 | 47.00 | 17.00 | 31.00 | 10000 | 6300 | AISI420 | AISI420 | AISI420 |
|
SUC204
|
20.00 | 47.00 | 17.00 | 31.00 | 10000 | 6300 | AISI420 | AISI420 | AISI420 |
|
SUC205
|
25.00 | 52.00 | 17.00 | 34.10 | 11000 | 7100 | AISI420 | AISI420 | AISI420 |
|
SUC205-16
|
25.40 | 52.00 | 17.00 | 34.10 | 11000 | 7100 | AISI420 | AISI420 | AISI420 |
|
SUC206
|
30.00 | 62.00 | 19.00 | 38.10 | 15200 | 10200 | AISI420 | AISI420 | AISI420 |
|
SUC206-20
|
31.75 | 62.00 | 19.00 | 38.10 | 15200 | 10200 | AISI420 | AISI420 | AISI420 |
|
SUC207-20
|
31.75 | 72.00 | 20.00 | 42.90 | 20100 | 18100 | AISI420 | AISI420 | AISI420 |
|
SUC207
|
35.00 | 72.00 | 20.00 | 42.90 | 20100 | 18100 | AISI420 | AISI420 | AISI420 |
|
SUC208-24
|
38.10 | 80.00 | 21.00 | 49.20 | 23000 | 18100 | AISI420 | AISI420 | AISI420 |
|
SUC208
|
40.00 | 80.00 | 21.00 | 49.20 | 23000 | 18100 | AISI420 | AISI420 | AISI420 |
|
SUC209-26
|
41.28 | 85.00 | 22.00 | 49.20 | 25600 | 18100 | AISI420 | AISI420 | AISI420 |
|
SUC209-28
|
44.45 | 85.00 | 22.00 | 49.20 | 25600 | 18100 | AISI420 | AISI420 | AISI420 |
|
SUC209
|
45.00 | 85.00 | 22.00 | 49.20 | 25600 | 18100 | AISI420 | AISI420 | AISI420 |
|
SUC210
|
50.00 | 90.00 | 24.00 | 51.60 | 27500 | 20200 | AISI420 | AISI420 | AISI420 |
|
SUC210-32
|
50.80 | 90.00 | 24.00 | 51.60 | 27500 | 20200 | AISI420 | AISI420 | AISI420 |
|
SUC211-32
|
50.80 | 100.00 | 25.00 | 55.60 | 33500 | 29200 | AISI420 | AISI420 | AISI420 |
|
SUC211
|
55.00 | 100.00 | 25.00 | 55.60 | 33500 | 29200 | AISI420 | AISI420 | AISI420 |
|
SUC212
|
60.00 | 110.00 | 27.00 | 65.10 | 36800 | 32800 | AISI420 | AISI420 | AISI420 |
|
SUC213
|
65.00 | 120.00 | 28.00 | 65.10 | 57500 | 40000 | AISI420 | AISI420 | AISI420 |
|
SUC214
|
70.00 | 125.00 | 29.00 | 74.60 | 60800 | 45000 | AISI420 | AISI420 | AISI420 |
|
SUC215
|
75.00 | 130.00 | 32.00 | 77.80 | 50890 | 41000 | AISI420 | AISI420 | AISI420 |
|
SUC216
|
80.00 | 140.00 | 33.00 | 82.60 | 55890 | 44620 | AISI420 | AISI420 | AISI420 |
|
SUC218
|
90.00 | 160.00 | 37.00 | 96.00 | 74000 | 60500 | AISI420 | AISI420 | AISI420 |
Inserto en Acero Inoxidable (SSB)
| Ref | d | D | B1 | B2 | Load Rating | Weight | OR Material | IR Material | Ball Material | |
|---|---|---|---|---|---|---|---|---|---|---|
| dynamic | static | |||||||||
|
SSB202
|
15.00 | 47.00 | 12.00 | 22.00 | 7820 | 3580 | 0.22 | AISI420 | AISI420 | AISI420 |
|
SSB203
|
17.00 | 47.00 | 12.00 | 22.00 | 7820 | 3580 | 0.25 | AISI420 | AISI420 | AISI420 |
|
SSB204
|
20.00 | 47.00 | 14.00 | 25.00 | 10370 | 5040 | 0.15 | AISI420 | AISI420 | AISI420 |
|
SSB205
|
25.00 | 52.00 | 15.00 | 27.00 | 11310 | 5970 | 0.17 | AISI420 | AISI420 | AISI420 |
|
SSB206
|
30.00 | 62.00 | 16.00 | 30.00 | 15730 | 8640 | 0.25 | AISI420 | AISI420 | AISI420 |
|
SSB207
|
35.00 | 72.00 | 17.00 | 32.00 | 20830 | 11680 | 0.37 | AISI420 | AISI420 | AISI420 |
|
SSB208
|
40.00 | 80.00 | 18.00 | 34.00 | 23550 | 13600 | 0.58 | AISI420 | AISI420 | AISI420 |
|
SSB209
|
45.00 | 85.00 | 19.00 | 41.20 | 26440 | 19560 | 0.80 | AISI420 | AISI420 | AISI420 |
|
SSB210
|
50.00 | 90.00 | 20.00 | 43.50 | 30010 | 22530 | 0.95 | AISI420 | AISI420 | AISI420 |
Inserto en Acero Inoxidable (SUCX)
| Ref | d | D | B1 | B2 | Load Rating | Weight | OR Material | IR Material | Ball Material | |
|---|---|---|---|---|---|---|---|---|---|---|
| dynamic | static | |||||||||
|
SUCX-04
|
20.00 | 52.00 | 17.00 | 34.10 | 13900 | 7800 | 0.19 | AISI420 | AISI420 | AISI420 |
|
SUCX-05
|
25.00 | 62.00 | 19.00 | 38.10 | 15400 | 10200 | 0.35 | AISI420 | AISI420 | AISI420 |
|
SUCX-06
|
30.00 | 72.00 | 20.00 | 42.90 | 20300 | 14000 | 0.54 | AISI420 | AISI420 | AISI420 |
|
SUCX-07
|
35.00 | 80.00 | 21.00 | 49.20 | 23000 | 16000 | 0.7 | AISI420 | AISI420 | AISI420 |
|
SUCX-08
|
40.00 | 85.00 | 22.00 | 49.20 | 25600 | 18100 | 0.8 | AISI420 | AISI420 | AISI420 |
|
SUCX-09
|
45.00 | 90.00 | 24.00 | 51.60 | 27500 | 20200 | 1.03 | AISI420 | AISI420 | AISI420 |
|
SUCX-10
|
50.00 | 100.00 | 25.00 | 55.60 | 34000 | 25500 | 1.28 | AISI420 | AISI420 | AISI420 |
Inserto en Acero Inoxidable (SK)| Ref | Shaft d | D | Bi | Be | r | n | G | w | ds | Load Rating | Weight | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| dynamic | static | |||||||||||
|
SK000
|
10 | 26 | 14.00 | 8 | 0.50 | 4.0 | 3.0 | 14.75 | M3X0,35 | 470 | 200 | 0.02 |
|
SK001
|
12 | 28 | 14.50 | 8 | 0.50 | 4.0 | 3.0 | 17.35 | M3X0,35 | 520 | 245 | 0.03 |
|
SK002
|
15 | 32 | 16.50 | 9 | 0.50 | 4.5 | 3.5 | 20.02 | M4X0,50 | 570 | 290 | 0.06 |
|
SK003
|
17 | 35 | 17.50 | 10 | 0.50 | 5.0 | 3.5 | 23.10 | M4X0,50 | 610 | 335 | 0.07 |
|
SK004
|
20 | 42 | 21.00 | 12 | 1.00 | 6.0 | 4.0 | 27.00 | M5X0,50 | 955 | 516 | 0.10 |
|
SK005
|
25 | 47 | 22.50 | 12 | 1.00 | 6.0 | 4.5 | 31.70 | M5X0,50 | 1030 | 595 | 0.12 |
|
SK006
|
30 | 55 | 24.50 | 13 | 1.50 | 6.5 | 5.0 | 38.00 | M5X0,50 | 1350 | 845 | 0.18 |
Inserto en Acero Inoxidable (SU)| Ref | Shaft d | D | L | Bi | Be | r | n | k | w | a | ds | Load Rating | Weight | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| dynamic | static | |||||||||||||
|
SU000
|
10 | 26 | 17.5 | 11.0 | 8 | 0.5 | 4.0 | 8.5 | 17 | 3.5 | M4X0,7 | 400 | 160 | 0.03 |
|
SU001
|
12 | 28 | 17.5 | 11.0 | 8 | 0.5 | 4.0 | 8.5 | 19 | 3.5 | M4X0,7 | 440 | 195 | 0.04 |
|
SU002
|
15 | 32 | 18.5 | 12.0 | 9 | 0.5 | 4.5 | 8.5 | 22 | 3.5 | M4X0,7 | 485 | 230 | 0.06 |
|
SU003
|
17 | 35 | 20.5 | 13.5 | 10 | 0.5 | 5.0 | 9.5 | 25 | 3.5 | M4X0,7 | 520 | 270 | 0.08 |
|
SU004
|
20 | 42 | 24.5 | 16.5 | 12 | 1.0 | 6.0 | 11.0 | 30 | 5.0 | M5X0,8 | 810 | 410 | 0.12 |
|
SU005
|
25 | 47 | 25.5 | 17.5 | 12 | 1.0 | 6.0 | 12.0 | 36 | 5.0 | M5X0,8 | 875 | 475 | 0.17 |
|
SU006
|
30 | 55 | 26.5 | 18.5 | 13 | 1.5 | 6.5 | 12.0 | 42 | 5.0 | M5X0,8 | 1150 | 675 | 0.23 |
Inserto en Acero (CS200)| Ref | Cross Reference | d | D2 | B | r min | Load Rating | Limiting Speed | Weight | OR Material | IR Material | Ball Material | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| dynamic | static | |||||||||||
|
CS200
|
1726200-2RS | 10 | 30 | 9 | 0.6 | 6500 | 2850 | 16500 | 0.032 | AISI52100 | AISI52100 | AISI52100 |
|
CS201
|
1726201-2RS | 12 | 32 | 10 | 0.6 | 6800 | 3050 | 15500 | 0.039 | AISI52100 | AISI52100 | AISI52100 |
|
CS202
|
1726202-2RS | 15 | 35 | 11 | 0.6 | 7650 | 3720 | 15000 | 0.050 | AISI52100 | AISI52100 | AISI52100 |
|
CS203
|
1726203-2RS | 17 | 40 | 12 | 0.6 | 9580 | 4780 | 12500 | 0.065 | AISI52100 | AISI52100 | AISI52100 |
|
CS204
|
1726204-2RS | 20 | 47 | 12 | 1.0 | 12800 | 6650 | 14000 | 0.110 | AISI52100 | AISI52100 | AISI52100 |
|
CS205
|
1726205-2RS | 25 | 52 | 15 | 1.0 | 14000 | 7880 | 9800 | 0.180 | AISI52100 | AISI52100 | AISI52100 |
|
CS206
|
1726206-2RS | 30 | 62 | 16 | 1.0 | 19500 | 11500 | 8200 | 0.200 | AISI52100 | AISI52100 | AISI52100 |
|
CS207
|
1726207-2RS | 35 | 72 | 17 | 1.1 | 25500 | 15200 | 7100 | 0.300 | AISI52100 | AISI52100 | AISI52100 |
|
CS208
|
1726208-2RS | 40 | 80 | 18 | 1.1 | 29500 | 18000 | 6300 | 0.370 | AISI52100 | AISI52100 | AISI52100 |
|
CS209
|
1726209-2RS | 45 | 85 | 19 | 1.1 | 31500 | 20800 | 5900 | 0.430 | AISI52100 | AISI52100 | AISI52100 |
|
CS210
|
1726210-2RS | 50 | 90 | 20 | 1.1 | 35000 | 23200 | 5500 | 0.460 | AISI52100 | AISI52100 | AISI52100 |
Inserto en Acero (11200)| Ref | d | D2 | Bi | B | D1 | d1 | r | Load Rating | Limiting Speed | Weight | Radial Play | OR Material | IR Material | Ball Material | Cage Material | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| dynamic | static | |||||||||||||||
|
204-PY3
|
16.0 | 45.225 | 18.67 | 14.494 | - | - | - | 12840 | 6650 | - | 0.126 | 0.01-0.038 | AISI52100 | AISI52100 | AISI52100 | - |
|
203-KRRAH02
|
16.2 | 40.000 | 18.29 | 12.000 | - | - | - | 9570 | 4790 | - | 0.070 | 0.011-0.025 | AISI52100 | AISI52100 | AISI52100 | 10# |
|
11204
|
20.0 | 47.000 | 40.00 | 14.000 | 37.8 | 29.2 | 1.0 | 9595 | 2470 | 17195 | 0.186 | 0.005-0.020 | AISI52100 | AISI52100 | AISI52100 | 08F |
|
11205
|
25.0 | 52.000 | 44.00 | 15.000 | 43.6 | 33.3 | 1.0 | 11685 | 3100 | 14725 | 0.220 | 0.005-0.020 | AISI52100 | AISI52100 | AISI52100 | 08F |
|
11206
|
30.0 | 62.000 | 48.00 | 16.000 | 51.6 | 40.1 | 1.0 | 15105 | 4370 | 12445 | 0.350 | 0.005-0.020 | AISI52100 | AISI52100 | AISI52100 | 08F |
|
11306
|
30.0 | 72.000 | 52.00 | 19.000 | 65.5 | 45.0 | 1.1 | 21000 | 6000 | 8500 | 0.620 | 0.005-0.020 | AISI52100 | AISI52100 | AISI52100 | 08F |
|
11207
|
35.0 | 72.000 | 52.00 | 17.000 | 59.1 | 47.7 | 1.1 | 15200 | 4845 | 11020 | 0.540 | 0.006-0.020 | AISI52100 | AISI52100 | AISI52100 | 08F |
|
11208
|
40.0 | 80.000 | 56.00 | 18.000 | 67.3 | 54.0 | 1.1 | 18430 | 6175 | 9595 | 0.720 | 0.006-0.020 | AISI52100 | AISI52100 | AISI52100 | 08F |
|
11308
|
40.0 | 90.000 | 58.00 | 23.000 | 82.0 | 57.7 | 1.5 | 28900 | 9500 | 6800 | 1.100 | 0.006-0.020 | AISI52100 | AISI52100 | AISI52100 | 08F |
|
11209
|
45.0 | 85.000 | 58.00 | 19.000 | 72.1 | 57.7 | 1.1 | 20900 | 6935 | 8835 | 0.770 | 0.006-0.023 | AISI52100 | AISI52100 | AISI52100 | 08F |
|
11210
|
50.0 | 90.000 | 58.00 | 20.000 | 77.1 | 62.7 | 1.1 | 21755 | 7600 | 8265 | 0.850 | 0.006-0.023 | AISI52100 | AISI52100 | AISI52100 | 08F |
|
11211
|
55.0 | 100.000 | 60.00 | 21.000 | 86.4 | 69.5 | 1.5 | 25650 | 9405 | 7315 | 1.170 | 0.008-0.028 | AISI52100 | AISI52100 | AISI52100 | 08F |
|
11212
|
60.0 | 110.000 | 62.00 | 22.000 | 95.2 | 78.0 | 1.5 | 28975 | 10830 | 6555 | 1.500 | 0.008-0.028 | AISI52100 | AISI52100 | AISI52100 | 08F |
Soportes tipo pie de Aluminio para ejes (SK)| Ref | Shaft diameter | H | E | W | L | F | G | P | B | S | Clamping Bolt | Mounting Bolt | Weight | Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SK8
|
8 | 20 | 21 | 42 | 14 | 32.8 | 6 | 18 | 32 | 5 | M4 | M5 | 0.024 | 6063 Aluminum Alloy-T6 |
|
SK10
|
10 | 20 | 21 | 42 | 14 | 32.8 | 6 | 18 | 32 | 5 | M4 | M5 | 0.024 | 6063 Aluminum Alloy-T6 |
|
SK12
|
12 | 23 | 21 | 42 | 14 | 37.5 | 6 | 20 | 32 | 5 | M4 | M5 | 0.030 | 6063 Aluminum Alloy-T6 |
|
SK13
|
13 | 23 | 21 | 42 | 14 | 37.5 | 6 | 20 | 32 | 5 | M4 | M5 | 0.030 | 6063 Aluminum Alloy-T6 |
|
SK16
|
16 | 27 | 24 | 48 | 16 | 44.0 | 8 | 25 | 38 | 5 | M4 | M5 | 0.040 | 6063 Aluminum Alloy-T6 |
|
SK20
|
20 | 31 | 30 | 60 | 20 | 51.0 | 10 | 30 | 45 | 6 | M5 | M6 | 0.070 | 6063 Aluminum Alloy-T6 |
|
SK25
|
25 | 35 | 35 | 70 | 24 | 60.0 | 12 | 38 | 56 | 6 | M6 | M6 | 0.130 | 6063 Aluminum Alloy-T6 |
|
SK30
|
30 | 42 | 42 | 84 | 28 | 70.0 | 12 | 44 | 64 | 9 | M6 | M8 | 0.180 | 6063 Aluminum Alloy-T6 |
Soportes en Termoplástico (TPL)
| Ref | d | a | c | b | h | m | t | v | w | Bi | n | s | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TPL204
|
20 | 99 | 23.00 | 12 | 64 | 76 | 36 | 87 | 46 | 31.00 | 12.70 | M16 | 0.18 |
|
TPL205
|
25 | 99 | 24.00 | 12 | 64 | 76 | 36 | 88 | 47 | 34.00 | 14.30 | M16 | 0.17 |
|
TPL206
|
30 | 125 | 27.50 | 12 | 76 | 89 | 40 | 101 | 63 | 38.40 | 15.90 | M16 | 0.27 |
|
TPL207
|
35 | 125 | 28.00 | 12 | 76 | 89 | 40 | 102 | 63 | 42.90 | 17.50 | M16 | 0.28 |
|
TPL208
|
40 | 140 | 29.00 | 16 | 85 | 102 | 40 | 113 | 80 | 49.20 | 19.00 | M16 | 0.36 |
|
TPL209
|
45 | 149 | 40.00 | 16 | 90 | 102 | 50 | 117 | 85 | 49.20 | 19.00 | M20 | 0.41 |
|
TPL210
|
50 | 149 | 35.50 | 16 | 90 | 102 | 50 | 117 | 85 | 51.60 | 19.00 | M20 | 0.47 |
